Features:

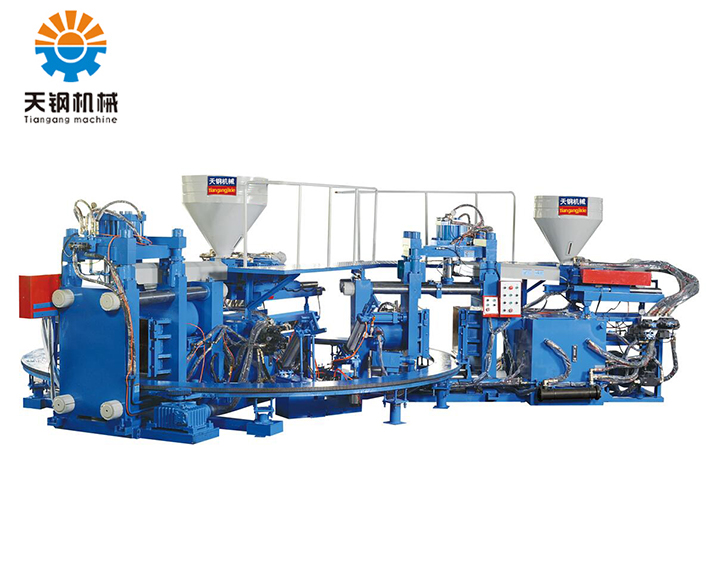

1. This machine is designed for production of PVC raw materials for color, color rain boots.
2. The machine adopts industrial man-machine interface, PLC control, touch screen display.
3. This machine uses double proportional hydraulic system, pressure and flow can be adjusted, the operation more convenient and reasonable, product quality is more stable.
4. The machine uses digital measurement, accurate measurement.
5. Rational layout, easy to operate, non-professionals can also be of proficiency.
6. The machine is equipped with a mechanical hand operation, automatic control, can save manpower and increase production.
7. The machine has a variable displacement pump system, servo motor system, which has a power saving function, variable pump can be saving about 25%, 40% of the servo system.
TG-YX-12/14/16×22S | ||||||
序号 | 参数名称 | Model | 单位(Unit) | TG-YX-12×22S | TG-YX-20×22S | TG-YX-24×22S |
1 | 使用原料 | Raw Material | PVC | PVC | PVC | |
2 | 圆盘工位 | Stations | stations | 12 | 20 | 24 |
3 | 容模尺寸 | Mold Size | mm | 680×360×200 | 680×360×200 | 680×360×200 |
4 | 螺杆直径 | Scre | ||||
TG-YX-12/14/16×22S | ||||||
序号 | 参数名称 | Model | 单位(Unit) | TG-YX-12×22S | TG-YX-20×22S | TG-YX-24×22S |
1 | 使用原料 | Raw Material | PVC | PVC | PVC | |
2 | 圆盘工位 | Stations | stations | 12 | 20 | 24 |
3 | 容模尺寸 | Mold Size | mm | 680×360×200 | 680×360×200 | 680×360×200 |
4 | 螺杆直径 | Screw Diameter | mm | 90/65 | 90/70 | 95/75 |
5 | 螺杆转速 | Screw rotating Speed | r/min | 0-150 | 0-150 | 0-150 |
6 | 最大注射容积 | Max injection Capacity | cm3 | 1130/560 | 1270/660 | 1420/880 |
7 | 注射压力 | Injection Pressure | kg/cm3 | 0-150/0-120 | 0-150/0-120 | 0-150/0-120 |
8 | 锁模压力 | Molding Pressure | tons | 250/45 | 250/45 | 250/45 |
9 | 电机功率 | Power Pump | kw | 22/15 | 22/18.5 | 22/18.5 |
10 | 机器尺寸 | Machine Dimension(L×W×H) | m | 5.5×5.1×2.4 | 6.6×5.9×2.4 | 6.6×5.9×2.5 |
11 | 机器净重 | Machine Weight | tons | 18 | 19 | 20 |
w Diameter
mm | 90/65 | 90/70 | 95/75 | |||
5 | 螺杆转速 | Screw rotating Speed | r/min | 0-150 | 0-150 | 0-150 |
6 | 最大注射容积 | Max injection Capacity | cm3 | 1130/560 | 1270/660 | 1420/880 |
7 | 注射压力 | Injection Pressure | kg/cm3 | 0-150/0-120 | 0-150/0-120 | 0-150/0-120 |
8 | 锁模压力 | Molding Pressure | tons | 250/45 | 250/45 | 250/45 |
9 | 电机功率 | Power Pump | kw | 22/15 | 22/18.5 | 22/18.5 |
10 | 机器尺寸 | Machine Dimension(L×W×H) | m | 5.5×5.1×2.4 | 6.6×5.9×2.4 | 6.6×5.9×2.5 |
11 | 机器净重 | Machine Weight | tons | 18 | 19 | 20 |
