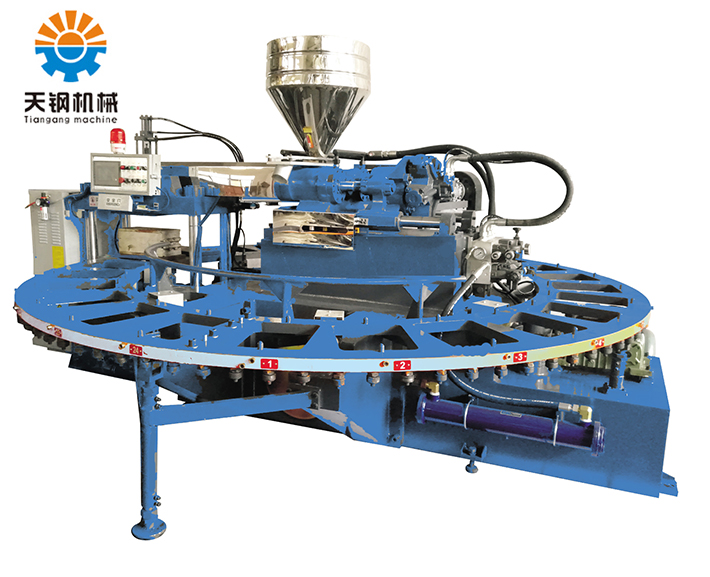

Energy-saving 1-color Plastic Sole Injection Molding Machine
Product Details
Features:
1.The machine is special designed for various single color shoe sole, such as casual shoe sole, male and female sole, children’s sole and so on.
2.It can applied to all kinds of thermoplastic materials, such as PVC, TPR, TPU and so on.
3.Adopt major diameter screw with large material injection volume and high production.
4.The rotary table is driven by servo motor which can save energy with low noise.
5.Injections adopt import electronic scale to control the injection volume which can assure measurement accuracy.
6.Adopt the automatic computer control system with touch screen control system which can be easy to operate and check freely.
7.Adopt the cooling mold of high power fan which is efficient.
Special resistance structure can save energy which is also easy and safe to operate.
| TG-YP-20/24/30×11 | ||||||
| 序号 | 参数名称 | Model | 单位（Unit） | TG-YP-20×11 | TG-YP-24×11 | TG-YP-30×11 |
| 1 | 使用原料 | Raw Material | TPR/PVC/TPU | TPR/PVC/TPU | TPR/PVC/TPU | |
| 2 | 螺杆直径 | Screw Diameter | mm | 75 | 75 | 75 |
| 3 | 圆盘直径 | Rotary-table Diameter | mm | 2070 | 2638 | 2940 |
| 4 | 圆盘工位 | Stations | stations | 20 | 24 | 30 |
| 5 | 容模尺寸 | Mold Size | mm | 400×300×230 | 400×300×230 | 400×300×230 |
| 6 | 最小模厚 | Min.Mold Height | mm | 70 | 70 | 70 |
| 7 | 注射料量 | Max.Injection | g | 880 | 880 | 880 |
| 8 | 锁模压力 | Molding Pressure | tons | 60 | 60 | 60 |
| 9 | 转盘驱动 | Rotary-table Driven System | system | 马达(Motor) | 马达(Motor) | 马达(Motor) |
| 10 | 电机功率 | Power Pump | kw | 22 | 22 | 22 |
| 11 | 总功率 | Tatol Power | kw | 32 | 32 | 32 |
| 12 | 机器尺寸 | Machine Dimension（L×W×H） | m | 3.5×2.1×2.2 | 4.2×2.8×2.2 | 4.6×3.1×2.2 |
| 13 | 机器产量 | Out Put | pairs/h | 150～180 | 150～180 | 150～180 |
| 14 | 机器净重 | Machine Weight | tons | 4 | 4.5 | 5 |

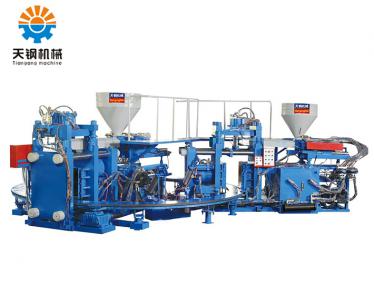

PREV：Energy-saving 3-color Plastic Sole Injection Molding Machine

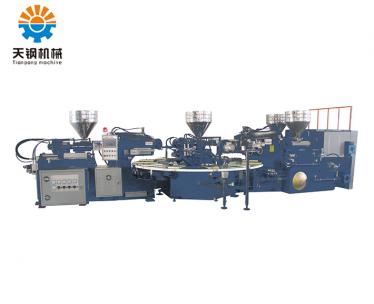

NEXT：Energy-saving 4-color Plastic Sole Injection Molding Machine
