Features:
1.PLC controlled,pre plasticized by hydraulic motor,driven by full hydraulic pressure,and cycled automatically.
2.High plastifying capacity,the plastifying temperature can be controlled automatically by preselection.
3.It adopts 20 points measuring and the injection volume can be chosen according to requirements of the mould at each working position.
4.The function of empty mould selection has been provided.
5.Parallel mould plate closing mechanism is adopted,which linked with a toggle system operated by single cylinder.
6.The machine is equipped with two time pressure injection system and the cramp pressing and mould closing order selecting function.
7.The round table indexes smoothly and it’s movement can easily be adjusted.
8.The round table rotation,plasticizing and oil supply for the injection are controlled independently.
There are many working positions, the time for setting is long enough,and guarantees the setting quality of shoe soles.

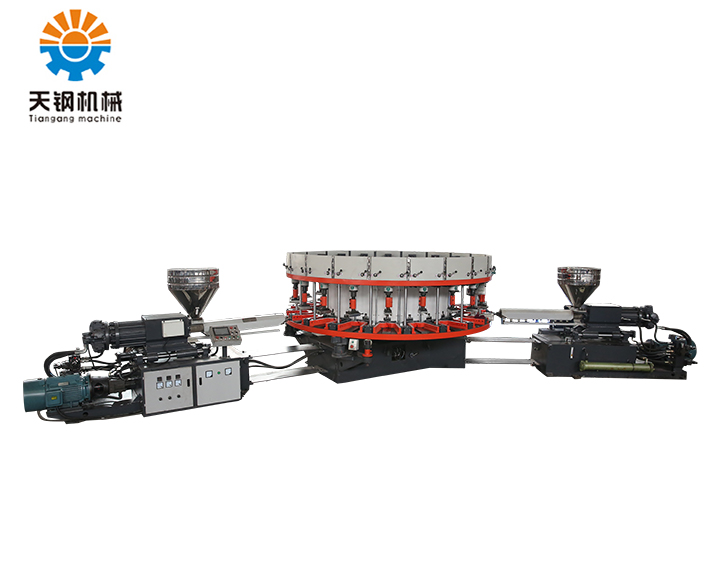

TG-LB-20×22 | ||||
序号 | 参数名称 | Model | 单位(Unit) | TG-LB-20×22 |
1 | 使用原料 | Raw Material | TPR/PVC/TPU | |
2 | 螺杆直径 | Screw Diameter | mm | 75 |
3 | 螺杆转速 | Screw rotating Speed | r/min | 0-160 |
4 | 螺杆长径比 | Screw length and diameter Ratio | 20:01 | |
5 | 工位数 | Number of Stations | 20 | |
6 | 最大注射容积 | Max injection Capacity | cm3 | 660 |
7 | 塑化能力 | Plastifying Capacity | g/s | 40 |
8 | 注射压力 | Injection Pressure | Mpa | 5 |
9 | 圆盘压力 | Disc Pressure | Mpa | 3 |
10 | 合模方式 | Clamp mould Style | V | |
11 | 提楦行程 | Shoe last Trip | mm | 60 |
12 | 鞋楦高度 | Shoe last Height | mm | 210-260 |
13 | 模框尺寸 | Mould frame dimensions | mm(L×W×h) | 340×180×60 |
14 | 装机功率 | Total Power | kw | 35.5 |
15 | 机器尺寸 | Machine Dimension | mm(L×W×h) | 6290×6150×1955 |
16 | 机器净重 | Machine Weight | kg | 12300 |
